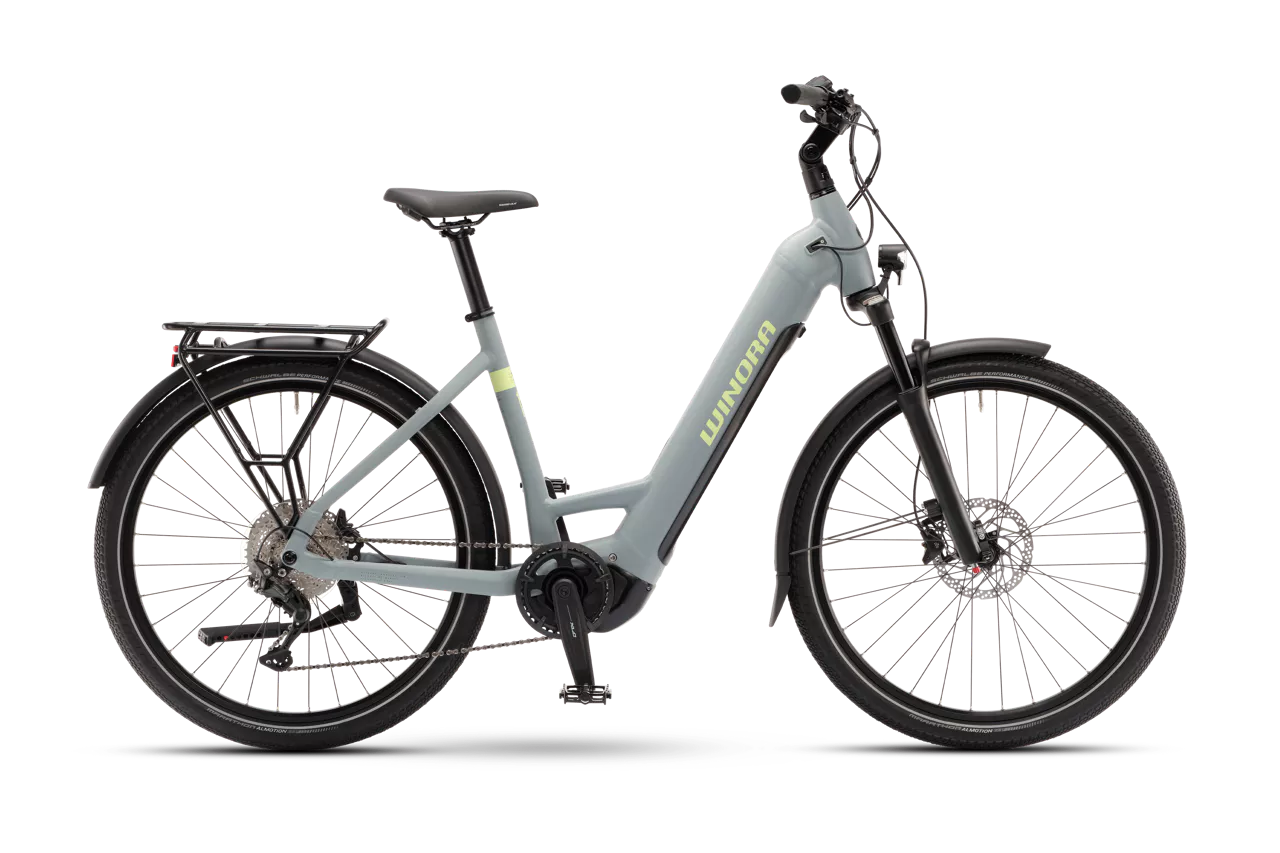

WINORA – Yucatan X10

ENGINE: Yamaha, PW-S2, 250W, 75 Nm

DISPLAY: Yamaha, Side Switch, 1.7″ LCD, 7 functions

BATTERY: In Tube, 720 Wh

FORK: SR Suntour, Mobie 25 LOR, Lockout, Steel spring, travel= 100 mm, Aluminium steerer tube 1 1/8″ – 1 1/2″ tapered, 15 x 100mm thru-axle

CRANK ARM: Winora, forged, Aluminium

BRAKE (FRONT): Shimano, MT410, Hydraulic disc brakes

BRAKE (REAR): Shimano, MT410, Hydraulic disc brakes

CLAMPING RING: Quick Release, Quick release, 38.1 mm

REAR DERAILLEUR: Shimano, Microshift Advent X RD-M6250M

SHIFT LEVER: Shimano, Microshift Advent X SLM9505

BOTTOM BRACKET: integrated in the motor

SPROCKET: Shimano, Microshift Advent X HG104

CHAIN: KMC, e10s

CHAINRING: Steel, 38 teeth

CHAIN GUIDE: Nylon directmount

BRAKE LEVER: Shimano, MT402, Aluminium,

BRAKE DISC (FRONT): Shimano, RT30-S, 160 mm

BRAKE DISC (REAR): Shimano, RT30-M, 180 mm

TYRE: Continental, Contact Cruiser, 62-584, 27.5″ x 2.4″

FRONT WHEEL HUB: Alu hub, Centerlock

REAR WHEEL HUB: Alu hub, Centerlock

HEADLIGHT: Herrmans, H-Black MR4, 40 lm

REAR LIGHT: Spanninga, Aerline 2 Brake

DYNAMO: via system battery

STAND: Ursus, Mooi, Rear stand
